Updated 300-510 Dumps Questions Are Available [2024] For Passing Cisco Exam
Free UPDATED Cisco 300-510 Certification Exam Dumps is Online
NEW QUESTION # 135
SIMULATION
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
- Refer to the Tasks tab to view the tasks for this lab item.
- Refer to the Topology tab to access the device console(s) and perform the tasks.
- Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
- All necessary preconfigurations have been applied.
- Do not change the enable password or hostname for any device.
- Save your configurations to NVRAM before moving to the next item.
- Click Next at the bottom of the screen to submit this lab and move to the next question.
- When Next is clicked, the lab closes and cannot be reopened.

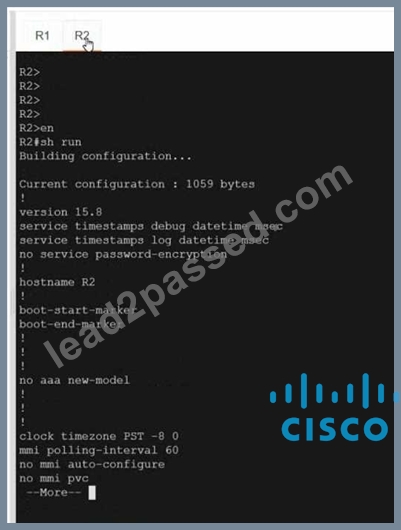

Topology
Tasks
Configure and verify an OSPF neighbor adjacency between R1 and R2 in OSPF area 0 according to the topology to achieve these goals:
1. R1 pings the Loopback0 interface of R2. Use interface-level configuration to complete this task.
2. R2 pings the Loopback0 interface of R1. Use interface-level configuration to complete this task.
3. R2 receives a single summary route 172.16.100.0/22 for networks 172.16.100.0/24,
172.16.101.0/24, and 172.16.103.0/24.
Answer:
Explanation:
NEW QUESTION # 136
Which feature provides service independence in service provider networks?
- A. binding SID that is used to stitch different domains
- B. node SID that identifies the network device
- C. adjacency SID that represents a path between the routers
- D. prefix SID that contains router hops toward the destination
Answer: B
NEW QUESTION # 137
Refer to the exhibit.
A network operators configuring BGP PIC on CE1 on already established neighborships with PE1ana PE2 inside the fully converged MPLS network Which element needs to be implemented to make this feature function effectively?
- A. community of 1 10 must be used to denote the PIC feature set to the routing protocol
- B. BGP import export policies must be applied on all devices for the routes needing BGP for PIC
- C. The operator must ensure that all prefixes have the same next-hop from PE1 and PE2 for BGP PICA reserved BGP
- D. Bidirectional Forwarding Detection must be applied to the upstream facing BGP interfaces.
Answer: D
NEW QUESTION # 138
Refer to the exhibit.
Which task must you perform on interface g1/0/0 to complete the SSM implementation?
- A. configure OSPFv3
- B. configure IGMPv3
- C. enable CDP
- D. disable IGMP
Answer: B
NEW QUESTION # 139
Refer to the exhibit.
Refer to the exhibit. A service provider has LDP and segment routing running in the network. Mobility traffic is carried through LDP and enterprise traffic is carried through segment routing. Which configuration must be implemented to connect the bank branch with the HUB site on routers?
- A. Configure segment-routing Sr-prefer prefix-list on AGI and AG2 router for 10.10.10.10/24.
- B. Enable segment-routing Mpls Sr-prefer on CRI and CR2 routers for 10.0.0.0/8.
- C. Configure segment-routing sr-prefer prefix-list on CRI and CR2 routers for 10.20.20.10/24.
- D. Enable segment-routing Mpls Sr-prefer on AGI and AG2 routers for 10.0.0.0/8.
Answer: C
NEW QUESTION # 140
Refer to the exhibit. R1 is expected to receive routes originating from AS 65516 and from any ASs that are directly attached to it. However, R1 is receiving routes only from AS 65516. Which action corrects the configuration?
- A. Change the regular expression in the AS-path permit filter to .*.
- B. Add the regular expression ^$. in the AS-path filter to permit the traffic from R2.
- C. Change the regular expression in the AS-path permit filter to ^65516_[0-9]*$.
- D. Change the regular expression in the AS-path permit filter to _65516_.
Answer: C
NEW QUESTION # 141
Refer to the exhibit.
Refer to the exhibit. CE1 and CE2 use connectivity over the service provider cloud to reach CE3 In the event of a link failure in the service provider cloud which BGP feature relies on IGP convergence to quickly assist in the installation of a backup path?
- A. BOP PIC core
- B. BGP graceful restart
- C. BGP confederations
- D. BGP route dampening
Answer: A
NEW QUESTION # 142
Drag and drop the features about multicast from the left onto the multicast protocols on the right. Not all options ate used.
Answer:
Explanation:
NEW QUESTION # 143
Refer to the exhibit. BGP is running on the network, and CE1 currently prefers routes to the internet via PE1. A network engineer must manipulate the BGP routes that CE1 receives from PE2 to be more desirable. The engineer configured a route map using MED and applied it on CE1 outbound from PE2. However, after a BGP soft reset, PE1 is still preferred. Which action must the engineer take so that PE2 is chosen as the next hop?
- A. Apply the route map on CE1 in the inbound direction.
- B. Configure the route map with MED and local preference to manipulate the route outbound.
- C. Configure the route map with AS path prepend to manipulate the AS path to exit the autonomous system.
- D. Update the route map to use only weight to manipulate the path.
Answer: B
NEW QUESTION # 144
Refer to the exhibit.
A network operator is troubleshooting TE tunnels and discovers that the soft preemption is not working as desired. Where should the soft preemption be applied to solve the issue?
- A. under the tunnel-te1 interface on PE1
- B. explicitly for tunnel-te 1 under the Cisco MPLS TE configuration mode after the timeout setting
- C. Under the interface Loopback0 necessary for this deployment type.
- D. on the tail-end device for tunnel-te1 192.168.0.7
Answer: A
NEW QUESTION # 145
Refer to the exhibit.
An engineer applied the summarization configuration on R1 for four networks (192.168.20.0/24 to 192.168.23.0/24) in area 1 and eight networks (192.168.32.0/24 to 192.168.39.0/24) in area 2 to stop the flooding of all the customer routes. While checking the routing table of R2, the engineer noticed that R1 is still sending only specific routes to R2. Which configuration should the engineer apply on R1 to summarize routes?
- A. Option A
- B. Option C
- C. Option D
- D. Option B
Answer: B
NEW QUESTION # 146
What is a feature of SR-PCE?
- A. It learns the topology information via OSPF or IS-IS or through BGP-LS.
- B. It uses the IGP metric in its path calculations to optimize reachability.
- C. It uses the TE metric in its calculations to optimize the cumulative TE metric
- D. It learns the topology information via OSPF or IS-IS only
Answer: A
NEW QUESTION # 147
Refer to the exhibit.
Refer to the exhibit. An engineering team implemented IS-IS on the network, with several different areas. Recently, router R6 in area 3 has been experiencing excessive CPU usage. To reduce the load, a network engineer implemented route summarization on R2 However. R6 is still receiving the full routes from all routers. Which action must the engineer take to resolve the excessive CPU usage?
- A. Configure routers R3 and R5 to send summary routes to R6.
- B. Configure the Level 2 router R6 to manage summarization for the network
- C. Configure router R1 to send only the default route to R2 and R4.
- D. Configure all routers as Level 1/2 routers so that route summarization functions throughout the network
Answer: A
NEW QUESTION # 148
After an engineer configures BGP in R1, it starts receiving this message
*Jun 29 13:30:50.122: %BGP-5-ADJCHANGE: neighbor 192.168.10.1 Down User reset Jun 29 13:30:52.341: %BGP-3-NOTIFICATION: sent to neighbor 192.168.10.1
2/6 (unacceptable hold time) 0 bytes
Which action makes the peering come back up again?
- A. Set up a hello timer higher.
- B. Set up a hold-down timer higher.
- C. Make a soft reset to the peer.
- D. Set up a minimum hold-down timer higher.
Answer: D
NEW QUESTION # 149
Refer to the exhibit. Router 1 is connected to router 2 on interface TenGigE0/1.
Which interface provides the alternate path to 172.16.200.9/32 when the link between router 1 and router 2 goes down?
- A. A backup path must be statically installed
- B. A primary path must be manually installed
- C. TenGigE0/2 interface provides the alternate path
- D. TenGigE0/1 interface provides the alternate path
Answer: C
NEW QUESTION # 150
Refer to the exhibit.
How are packets directed through the data plane when SRv6 is implemented?
- A. An ordered list of segments is encoded in a routing extension header
- B. The packet is encapsulated with a header and trailer encoding the ordered list of segments
- C. The MPLS data plane is used to push labels onto IGP routes
- D. A stack of labels represents an ordered list of segments
Answer: A
NEW QUESTION # 151
Refer to the exhibit. A network operator wants to expand the segment routing global block in upcoming maintenance. The operator must ensure that the changes to the segment routing global block have no adverse impacts on the prefix-sid associated with the loopback0 interface used within the OSPF domain. Which command can the operator use to enforce R2 to have a strict prefix-sid assignment to loopback0?
- A.
- B.
- C.
- D.
Answer: D
NEW QUESTION # 152
Refer to the exhibit. An administrator is troubleshooting network issues on a customer's network PE1 cannot form an LDP relationship with PE2 using LDP ID 192 168.1.1. Due to this connectivity issue, the customer's routes behind both PE routers cannot be exchanged.
Which action must the administrator take to correct the problem?
- A. Create a targeted LDP session on PE2 to override the missing routing table entry on PE1.
- B. Enable LDP session protection on the link that P1 uses as the next hop to PE2.
- C. Configure PE2 to automatically select its own LDP router ID with 192.168.1.1.
- D. Configure PE1 with a static route to 192.168.1.1.
Answer: D
NEW QUESTION # 153
Refer to the exhibit. An engineer working for a private telecommunication company with an employee id: 1234:09:567 implemented this configuration on Router1, what is the effect of it?
- A. Router 1 sends and receives multiple best paths from neighbor 192.168.1.1
- B. Router 1 sends up to three paths to neighbor 192.168.1.1 for all routes
- C. Router 1 receives only one best path from neighbor 192.168.1.1
- D. Router 1 sends only one best path to neighbor 192 168.1.1.
Answer: A
NEW QUESTION # 154

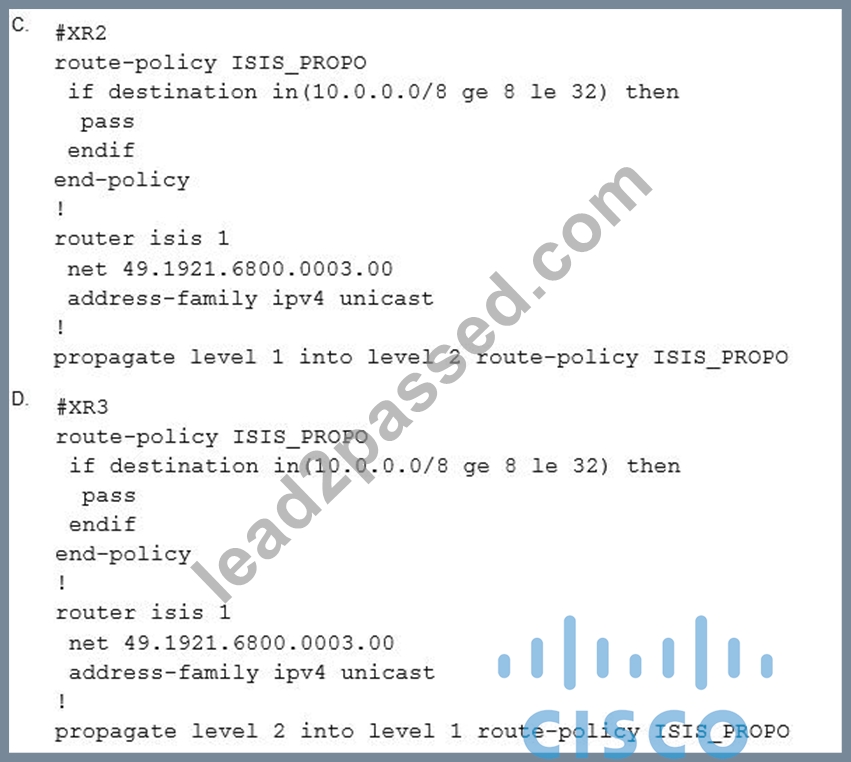

Refer to the exhibit. A network operator must inject a Level 1 route from XR2 (10.16.16.0/24) into the ISIS topology.
Which configuration allows the injection in a way that XR3 and XR1 have a valid and working route for 10.16.16.0/24?
- A. Option A
- B. Option D
- C. Option C
- D. Option B
Answer: B
NEW QUESTION # 155
Refer to the exhibit.
A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?
- A. Reconfigure the route-policy ALL_LABELS to pass.
- B. Remove the allocate-labels command.
- C. Reconfigure the route-policy ALL_LABELS to match all after the drop.
- D. Remove the route policy and only configure "allocate-label".
Answer: A
NEW QUESTION # 156
You have configured routing policies on a Cisco IOS XR device with routing policy language.
Which two statements about the routing policies are true? (Choose two.)
- A. The routing policies are implemented using route maps.
- B. You can change an existing routing policy by editing individual statements.
- C. The routing policies affect BGP-related routes only.
- D. If you make edits to an existing routing policy without pasting the full policy into the CLI, the previous policy is overwritten.
- E. The routing policies are implemented in a sequential manner.
Answer: B,E
NEW QUESTION # 157
Refer to the exhibit. An administrator is troubleshooting Internet access issues on a customer's network. After applying this ISIS configuration to R1, the administrator notices that it fails to redistribute the default route into IS-IS. After checking the connectivity between the ISIS router and the ISP router the engineer confirmed there is Layer 3 connectivity between them. Which action should be taken to correct the problem?
- A. Configure the default route under any routing protocol other than IS-IS
- B. Add the default-information originate command to the configuration
- C. Configure R1 as a Layer 1 router
- D. Associate the default route with a VRF
Answer: B
NEW QUESTION # 158
A network engineer recently deployed a wireless network for users at a new office to join video conferences wirelessly. The existing network consists of routers that are configured for EIGRP and BGP. Which are located at several data centers in different physical locations. The engineer configured PIM-SSM within a single domain from a single source. However, during the testing phase, the video conference failed to work for any of the users. The IPs are reachable and firewalls in the network are configured correctly to allow the traffic.
Which action resolves the issue?
- A. Configure PIM sparse mode to replace PIM-SSM.
- B. Configure PIM dense mode with multidomain multicast
- C. Configure the devices to send join messages toward a multicast SPT
- D. Configure PIM dense mode to replace P1M-SSM.
Answer: C
NEW QUESTION # 159
......
